KLINGER®top-chem 2005
High chemical resistance in strong acidic applications
KLINGER®top-chem 2005 offers outstanding performance and high chemical resistance in strong acidic applications. The material is suitable for a wide range of applications in the chemical industry. KLINGER®top-chem 2005 is resistant to cold flow and has very good mechanical properties at medium temperatures. This material also meets FDA conformity.
Basis: PTFE filled gasket material with inorganic fillers.
Typical Values Refer to 2.0 mm Thick Material
| Compressibility ASTM F36 M | 4 % |
| Recovery ASTM F36 M | 40 % |
| Stress relaxation DIN 52913 30 MPa, 16 h/150°C |
25 MPa |
| KLIGER Cold/Hot Compression Test 50MPa Thickness Decrease 73°F (23°C) Thickness Decrease 500°F (260°C) |
5 % 35 % |
| Tightness DIN 28090-2 | 0.02 mg/s x m |
| Thickness/Weight Increase H2SO4, 100%, 18 h/23°C HNO3, 100%, 18 h/260°C |
1 / 1 % 1 / 2 % |
| Density | 2.2 g/cm3 |
| Average surface resistance pO | 3.1x10E13 Ω |
| Average specific volume resistance pD | 3.2x10E13 Ω cm |
| Average dielectric strength Ed | 23.8 kV/mm |
| Average power factor 50 Hz | 0.071 tanδ |
| Average dielectric coefficient 50 Hz | 3.2 εr |
| Thermal conductivity λ | 0.42 W/mK |
| Color | Orange |
CERTIFICATES & APPROVALS
» BAM tested
» DIN-DVGW
» WRAS approval
» KTW-Guideline
» DNV GL
» TA-Luft (Clean air)
» FDA conformity
» Regulation (EU) No. 1935/2004
KEY FEATURES & BENEFITS
» Mainly for use in alkaline
» Resistant to cold flow
» Consistent material composition
» No ageing of the material
The pressure/temperature graphs shown are the most current method of determining the suitability of a gasket material in a known environment. However, chemical compatibility must also be considered.

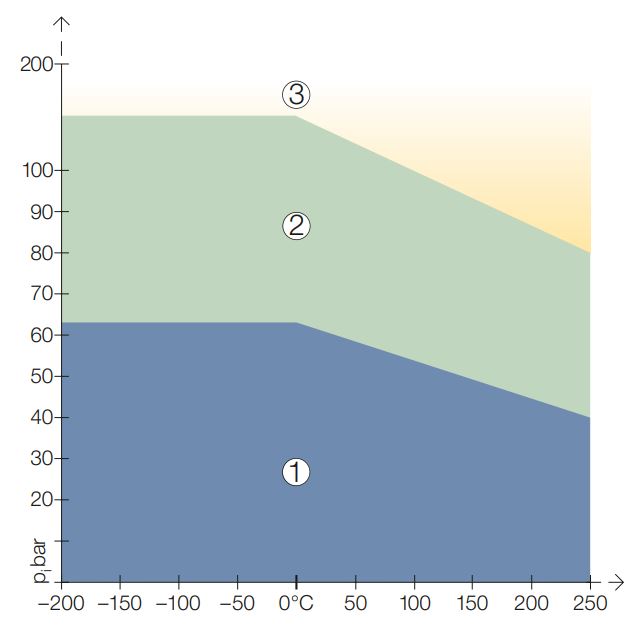

ρT diagram for thickness 2.0 mm:
In area 1 the gasket material is suitable using common installment practices subject to chemical compatibility
In area 2 appropriate measures are necessary for installation of the gasket to ensure maximum performance. Please call or refer to KLINGERexpert for assistance.
In area 3 do not install gaskets in these applications without first referring to KLINGERexpert or contacting KLINGER Thermoseal's technical support service.
In area 2 appropriate measures are necessary for installation of the gasket to ensure maximum performance. Please call or refer to KLINGERexpert for assistance.
In area 3 do not install gaskets in these applications without first referring to KLINGERexpert or contacting KLINGER Thermoseal's technical support service.
The ability of a gasket to make and maintain a seal depends not only on the style and quality of the gasket material, but also on medium being sealed, the flange design, the amount of pressure applied to the gasket by the bolts and how the gasket is assembled onto the flanges and tightened. These factors are beyond the manufacturer's control. Please take note of our installation manual in TECHNICAL RESOURCES.
