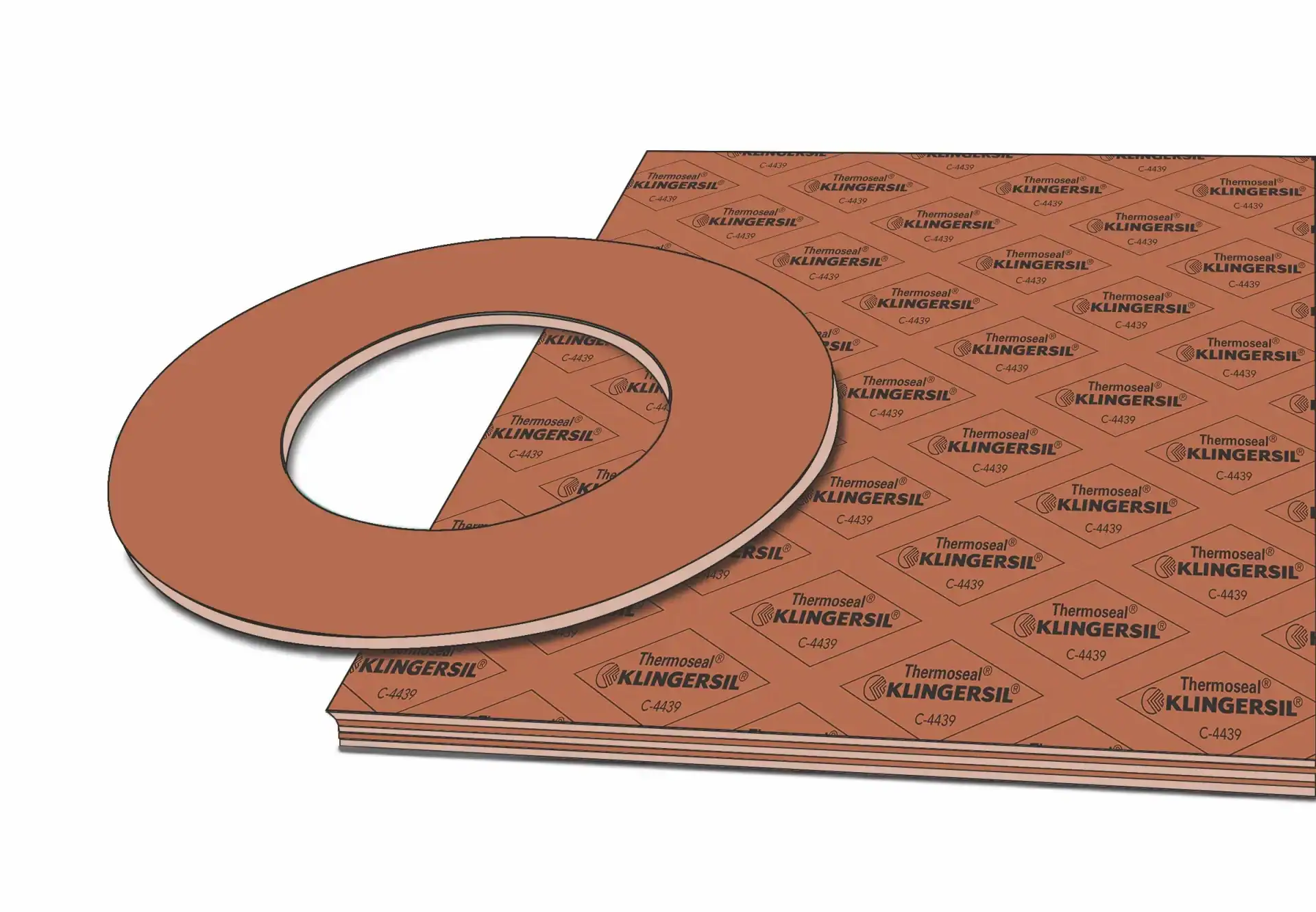

KLINGERSIL® C-4439
High performance steam sheet with metal reinforcement
KLINGERSIL® C-4439 is an excellent high-performance material for use in high temperature and high-stress applications. The expanded metal reinforcement is a galvanized low carbon steel insert which makes this material suitable when vibrations are present.
This material is manufactured with a combination of fiberglass and aramid and inorganic fibers reinforced with a nitrile binder.
Typical Values Refer to 1/16" Thick Material Unless Noted
| Creep relaxation ASTM F38B (1/32") | 20 % |
| Compressibility ASTM F36J (1/32") | 6 - 12 % |
| Recovery ASTM F36J | 50 % |
| KLINGER Hot Compression Test Thickness Decrease 73°F (23°C) Thickness Decrease 572°F (23°C) |
10 % initial 6 % additional |
| Weight increase ASTM F146 after immersion in Fuel B, 5h/73°F (23°C) |
9 % maximum |
| Thickness Increase ASTM F146 after immersion in ASTM Oil IRM 901, 5h/300°F (149°C) ASTM Oil IRM 903, 5h/300°F (149°C) ASTM Fuel A, 5h/73°F (23°C) ASTM Fuel B, 5h/73°F (23°C) |
0 - 5 % 0 - 5 % 0 - 5 % 5 - 10 % |
| Dielectric Strength ASTM D149-95a | 10 kV/mm |
| Density ASTM D149-95a | 131 lb/ft ³ (2.1 g/cc ³) |
| Leachable Chloride Content FSA Method | 150 ppm |
| ASTM F104 Line Call Out | F712112B3E12K6M8 |
| Color | Red |
The pressure/temperature graphs shown are the most current method of determining the suitability of a gasket material in a known environment. However, chemical compatibility must also be considered.
pT diagram for thickness 1/16":

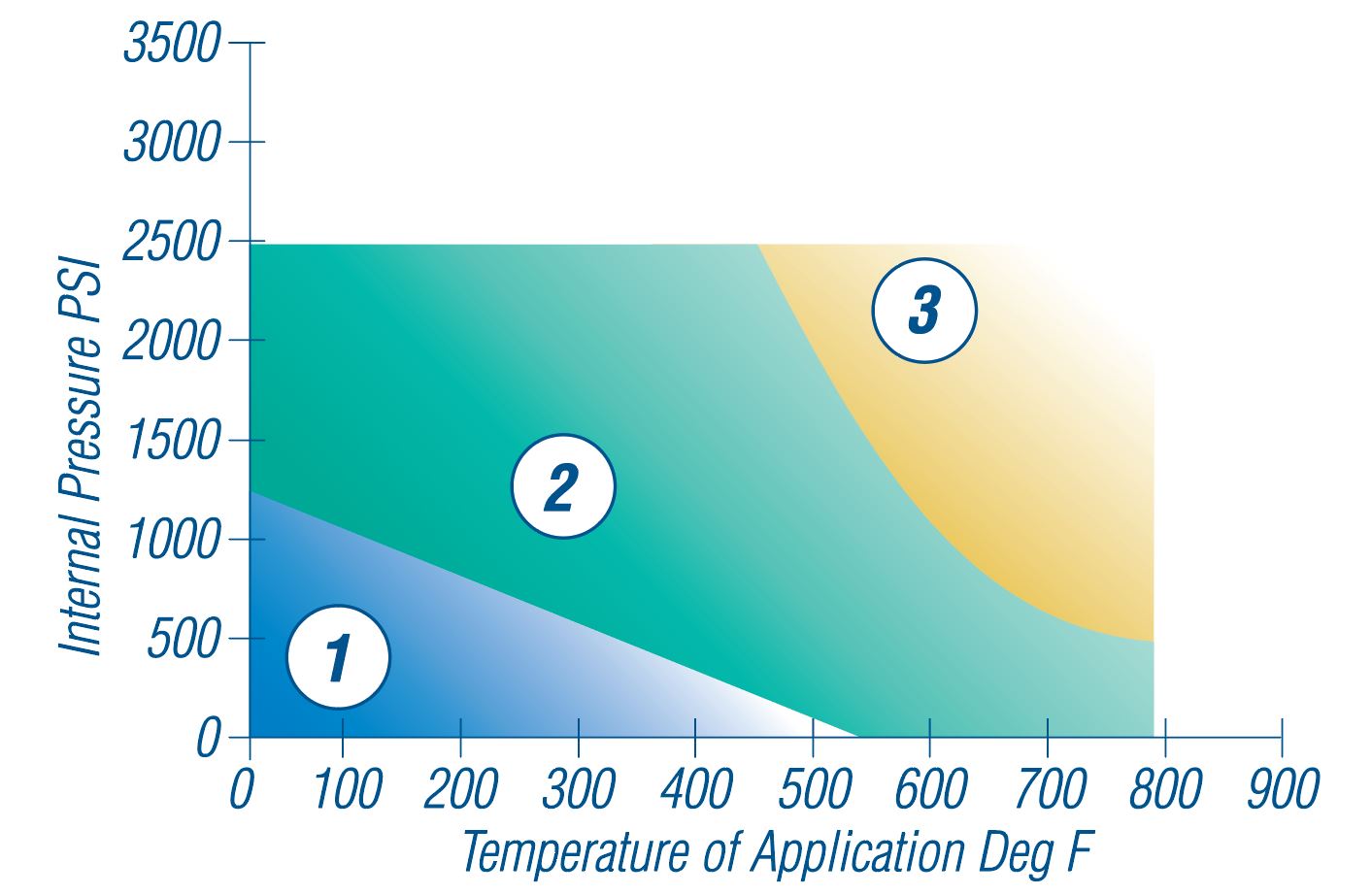

LIQUIDS

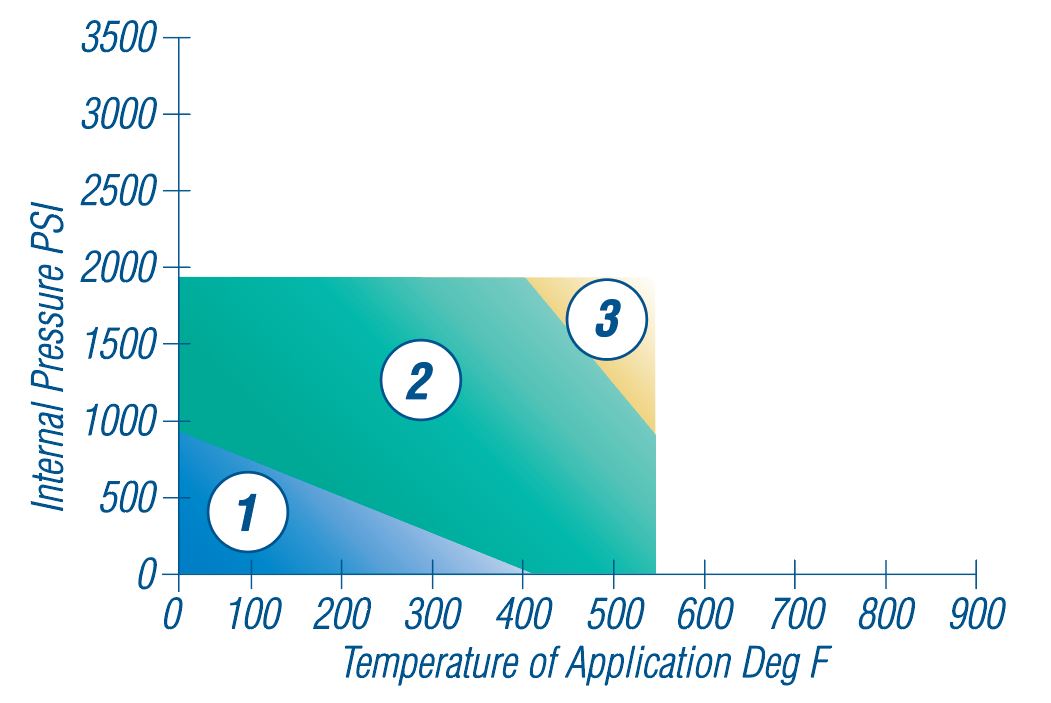

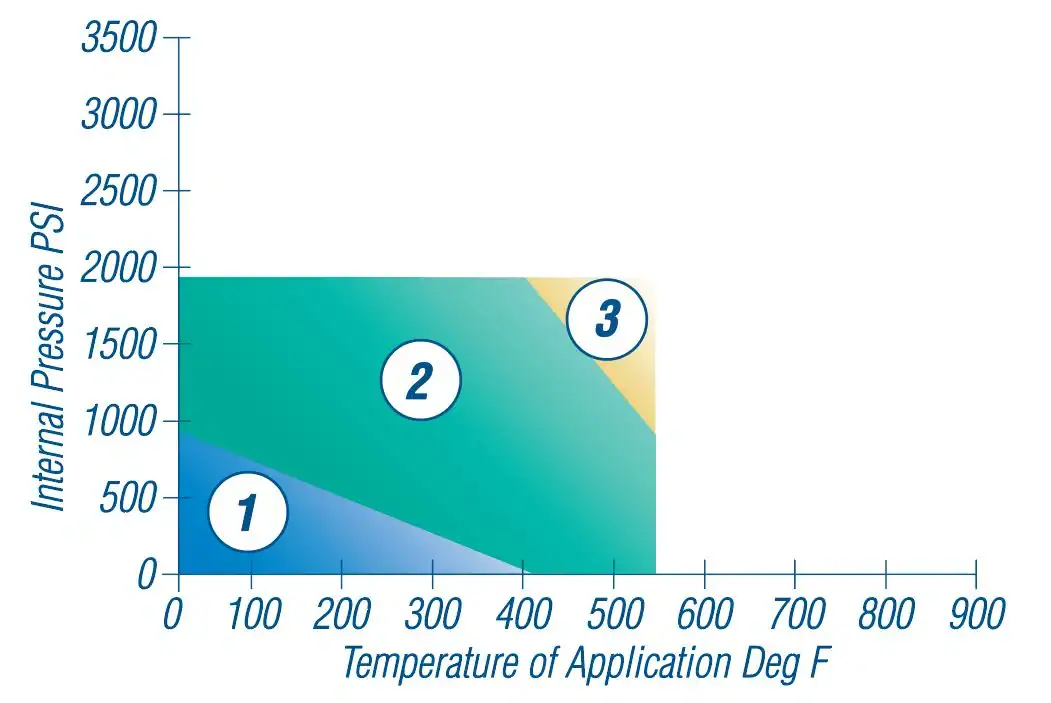

GASES & STEAM
In area 1 the gasket material is suitable using common installment practices subject to chemical compatibility
In area 2 appropriate measures are necessary for installation of the gasket to ensure maximum performance. Please call or refer to KLINGERexpert for assistance.
In area 3 do not install gaskets in these applications without first referring to KLINGERexpert or contacting KLINGER Thermoseal's technical support service.
In area 2 appropriate measures are necessary for installation of the gasket to ensure maximum performance. Please call or refer to KLINGERexpert for assistance.
In area 3 do not install gaskets in these applications without first referring to KLINGERexpert or contacting KLINGER Thermoseal's technical support service.
The ability of a gasket to make and maintain a seal depends not only on the style and quality of the gasket material, but also on medium being sealed, the flange design, the amount of pressure applied to the gasket by the bolts and how the gasket is assembled onto the flanges and tightened. These factors are beyond the manufacturer's control. Please take note of our installation manual in TECHNICAL RESOURCES.
