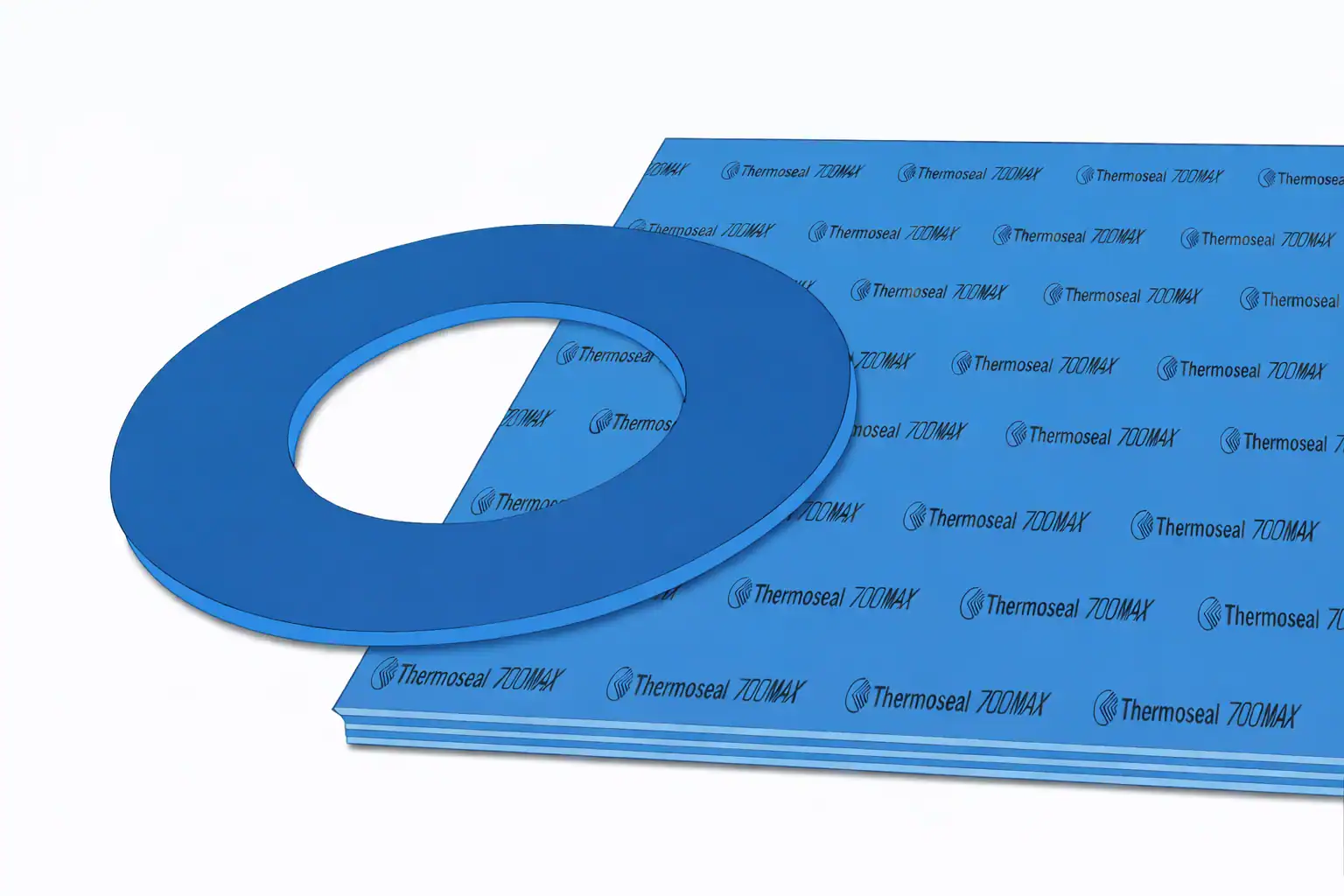

700 MAX
General application gasket material
700 MAX is a general service compressed non -asbestos gasket material with a wide range of application potential. Use it in applications such as hydrocarbons, hot water, steam, oil, and gas
service.
This calendered sheet is manufactured with quality fibers, fillers with a nitrile binder (NBR).
MATERIAL CHARACTERISTICS
- Excellent sealability
- Good chemical resistance
- Temperature range -40°F to 700°F
Typical Values Refer to 1/16" Thick Material Unless Noted
| Compressibility ASTM F36J | 7 - 17 % |
| Recovery ASTM F36J | > 50 % |
| Creep relaxation ASTM F38B (1/32”) | 21 % |
| KLINGER Hot Compression Test Thickness Decrease 73°F (23°C) Thickness Decrease 392°F (200°C) |
13 % 22 % |
| Thickness Increase ASTM F146 after immersion in ASTM Oil 3, 5h/300°F (149°C) ASTM Fuel B, 5h/73°F (23°C) |
10 % 10 % |
| Weight Increase ASTM F146 after immersion in ASTM Oil 3, 5h/300°F (149°C) ASTM Fuel B, 5h/73°F (23°C) |
6 %
6 %
|
| Density ASTM F1315 | 110 lb/ft3(1.75g/cc3) |
| Color | Blue |
