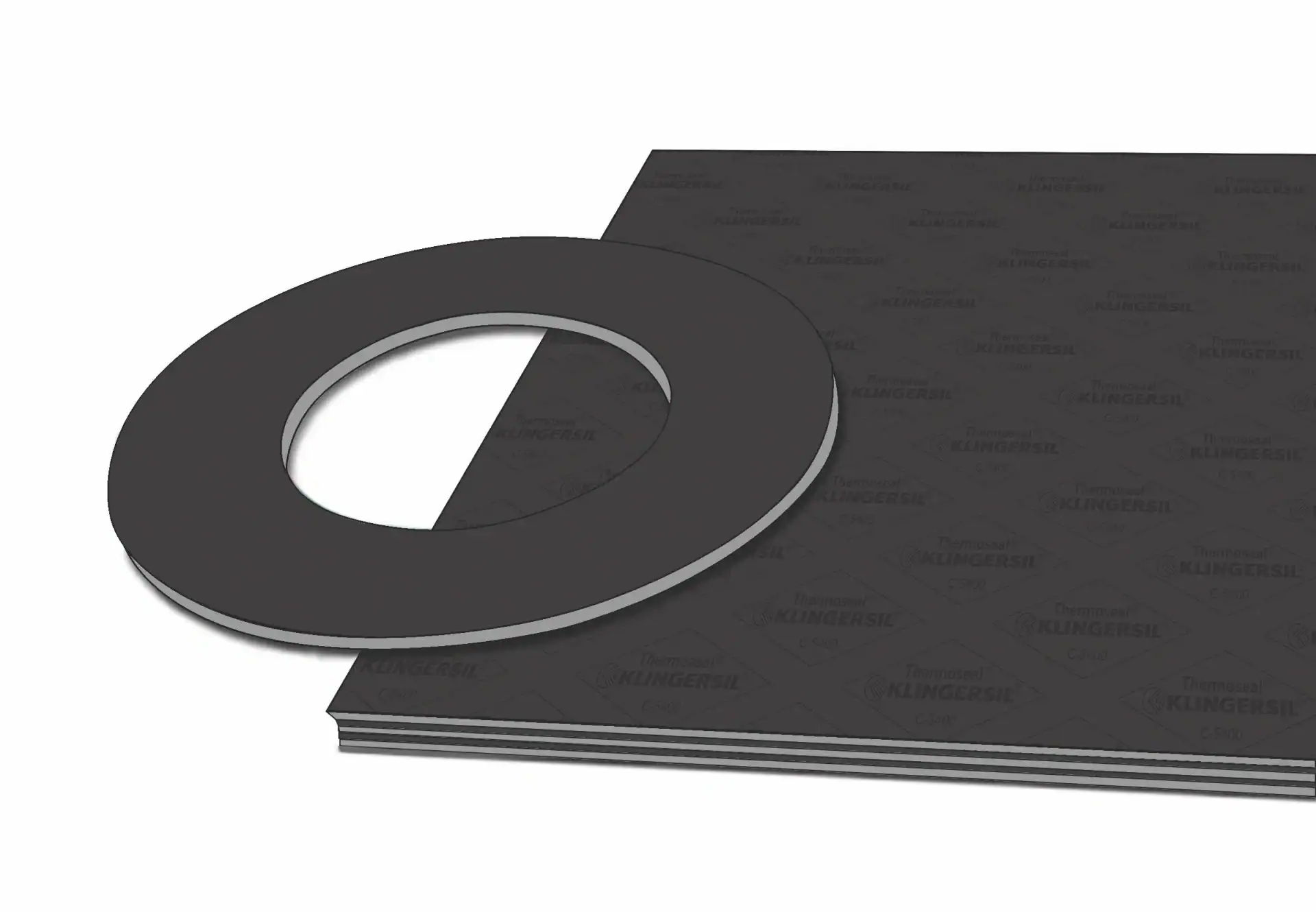

KLINGERSIL® C-5400
High performance premium sheet
KLINGERSIL® C-5400 gasket material is a high performance premium sheet that is chemically stable and provides excellent sealability in many applications including refrigerants, oils, gas, and fuels.
This material is manufactured with synthetic fibers reinforced with a neoprene binder.
Typical Values Refer to 1/16" Thick Material Unless Noted
| Creep relaxation ASTM F38B (1/32") | 25 % |
| Sealability ASTM F37A (1/32") | < 0.2 ml/hr |
| Gas Permeability DIN 3535/6 | < 0.5 ml/min |
| Compressibility ASTM F36J | 7 - 15 % |
| Recovery ASTM F36J | 50 % minimum |
| KLINGER Hot Compression Test Thickness Decrease 73°F (23°C) Thickness Decrease 572°F (23°C) |
13 % initial 23 % additional |
| Weight increase ASTM F146 after immersion in Fuel B, 5h/73°F (23°C) |
15 % maximum |
| Thickness Increase ASTM F146 after immersion in ASTM Oil IRM 901, 5h/300°F (149°C) ASTM Oil IRM 903, 5h/300°F (149°C) ASTM Fuel A, 5h/73°F (23°C) ASTM Fuel B, 5h/73°F (23°C) |
0 - 5 % 5 - 20 % 0 - 5 % 0 - 10 % |
| Dielectric Strength ASTM D149-95a | 18 kV/mm |
| Density ASTM F1315 | 106 lb/ft ³ (1.7 g/cc ³) |
| Leachable Chloride Content FSA Method | 500 ppm |
| ASTM F104 Line Call Out | F712232B3E22K6M5 |
| Color | Black or white |
The pressure/temperature graphs shown are the most current method of determining the suitability of a gasket material in a known environment. However, chemical compatibility must also be considered.
pT diagram for thickness 1/16":

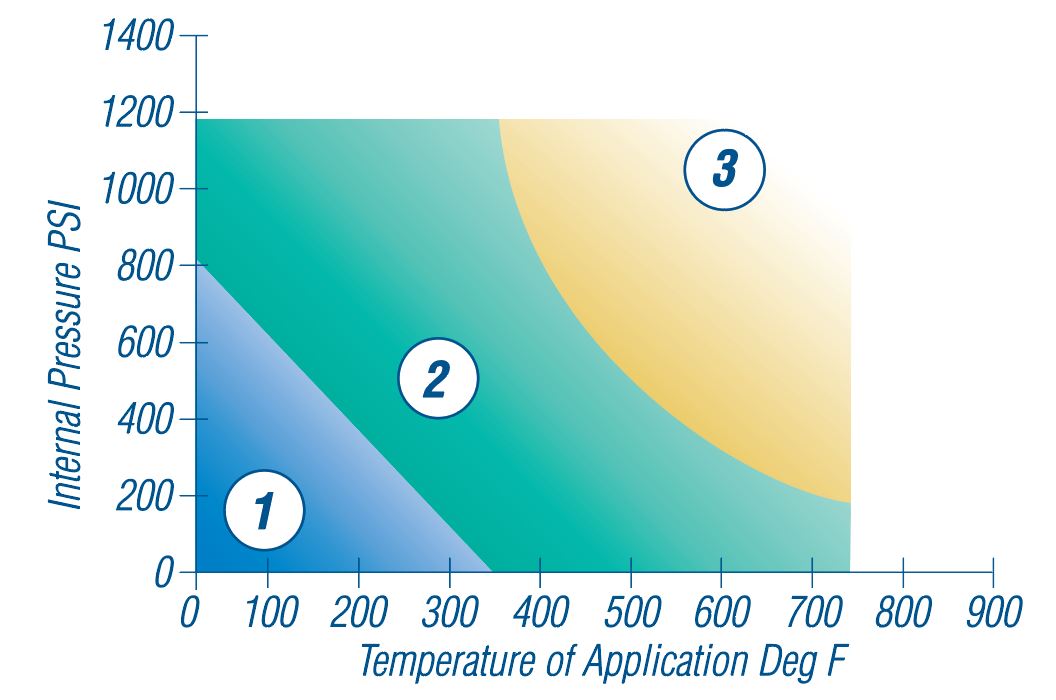

LIQUIDS

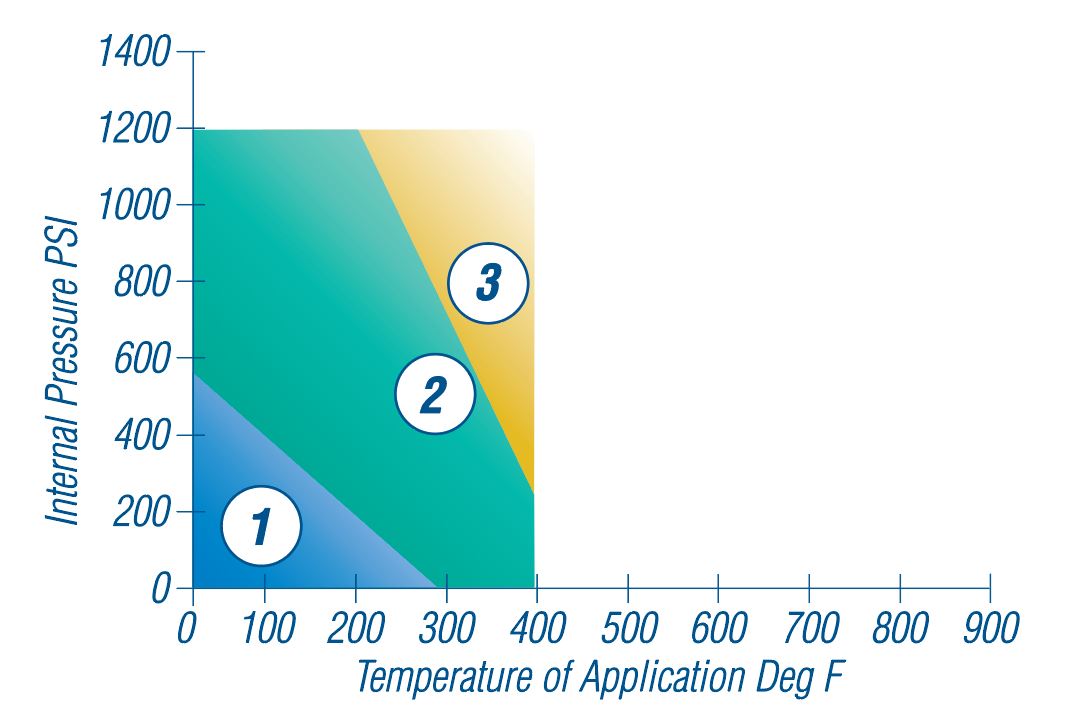

GASES & STEAM
In area 1 the gasket material is suitable using common installment practices subject to chemical compatibility
In area 2 appropriate measures are necessary for installation of the gasket to ensure maximum performance. Please call or refer to KLINGERexpert for assistance.
In area 3 do not install gaskets in these applications without first referring to KLINGERexpert or contacting KLINGER Thermoseal's technical support service.
In area 2 appropriate measures are necessary for installation of the gasket to ensure maximum performance. Please call or refer to KLINGERexpert for assistance.
In area 3 do not install gaskets in these applications without first referring to KLINGERexpert or contacting KLINGER Thermoseal's technical support service.
The ability of a gasket to make and maintain a seal depends not only on the style and quality of the gasket material, but also on medium being sealed, the flange design, the amount of pressure applied to the gasket by the bolts and how the gasket is assembled onto the flanges and tightened. These factors are beyond the manufacturer's control. Please take note of our installation manual in TECHNICAL RESOURCES.
