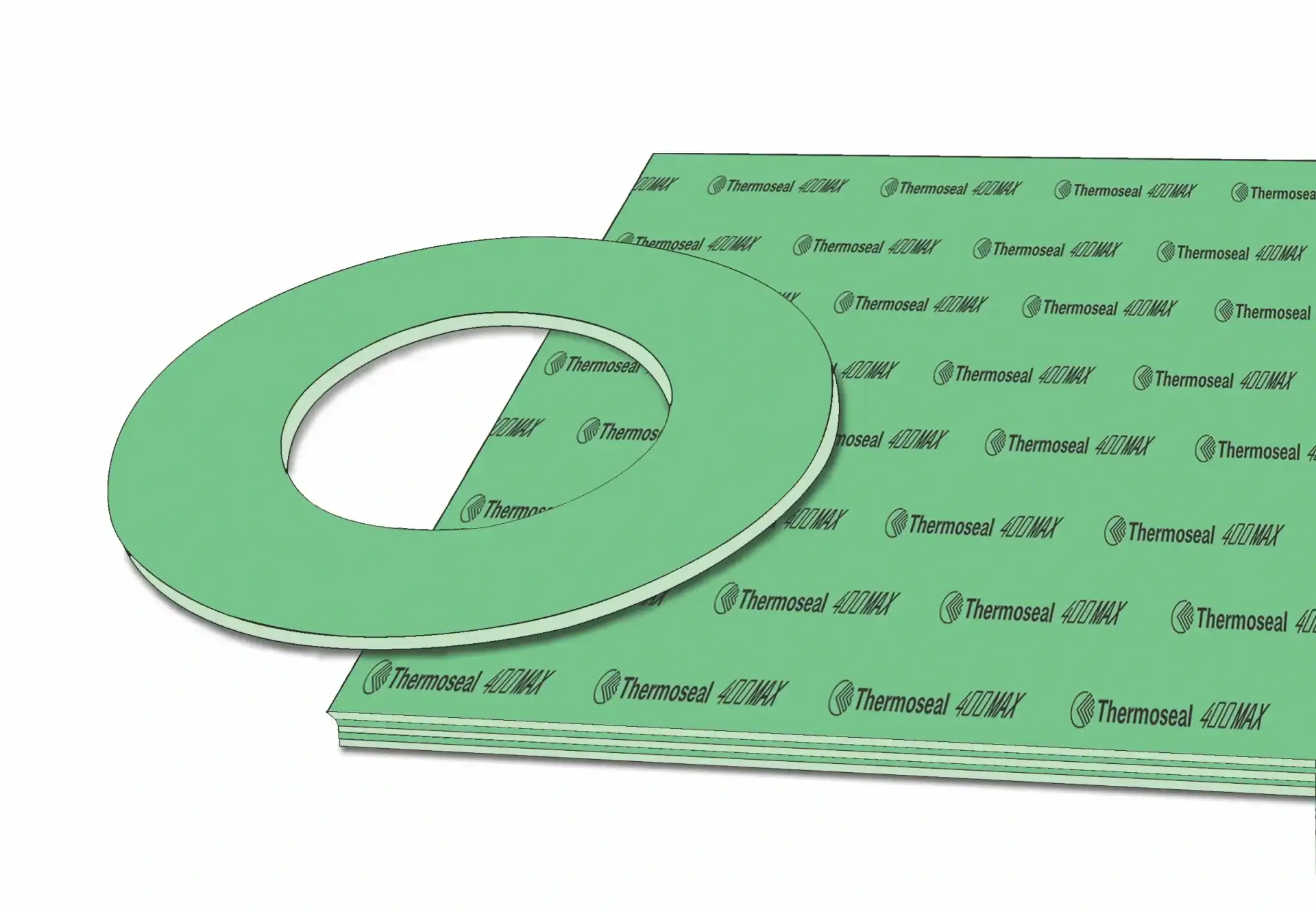

400 MAX
General application gasket material
400 MAX is a general service compressed non-asbestos gasket material with a wide range of application potential. Use it in general applications such as liquid and gas service.
This calendered sheet is manufactured with quality fibers, fillers with a nitrile binder (NBR).
MATERIAL CHARACTERISTICS
- Excellent sealability
- Good chemical resistance
- Good compressibility and recovery
- Good KLINGER Hot Compression results
- Temperature range -40°F to 400°F
Typical Values Refer to 1/16" Thick Material Unless Noted
| Compressibility ASTM F36J | 9 - 19 % |
| Recovery ASTM F36J | > 40 % |
| Ignition Loss DIN 52911 | < 32 % |
| KLINGER Hot Compression Test Thickness Decrease 73°F (23°C) Thickness Decrease 392°F (200°C) |
14 % 19 % |
| Thickness Increase ASTM F146 after immersion in ASTM Oil 3, 5h/300°F (149°C) ASTM Fuel B, 5h/73°F (23°C) |
8 % 8 % |
| Weight Increase ASTM F146 after immersion in ASTM Oil 3, 5h/300°F (149°C) ASTM Fuel B, 5h/73°F (23°C) |
17 %
17 %
|
| Density ASTM F1315 | 93 - 106 lb/ft3 |
| Color | Green |
